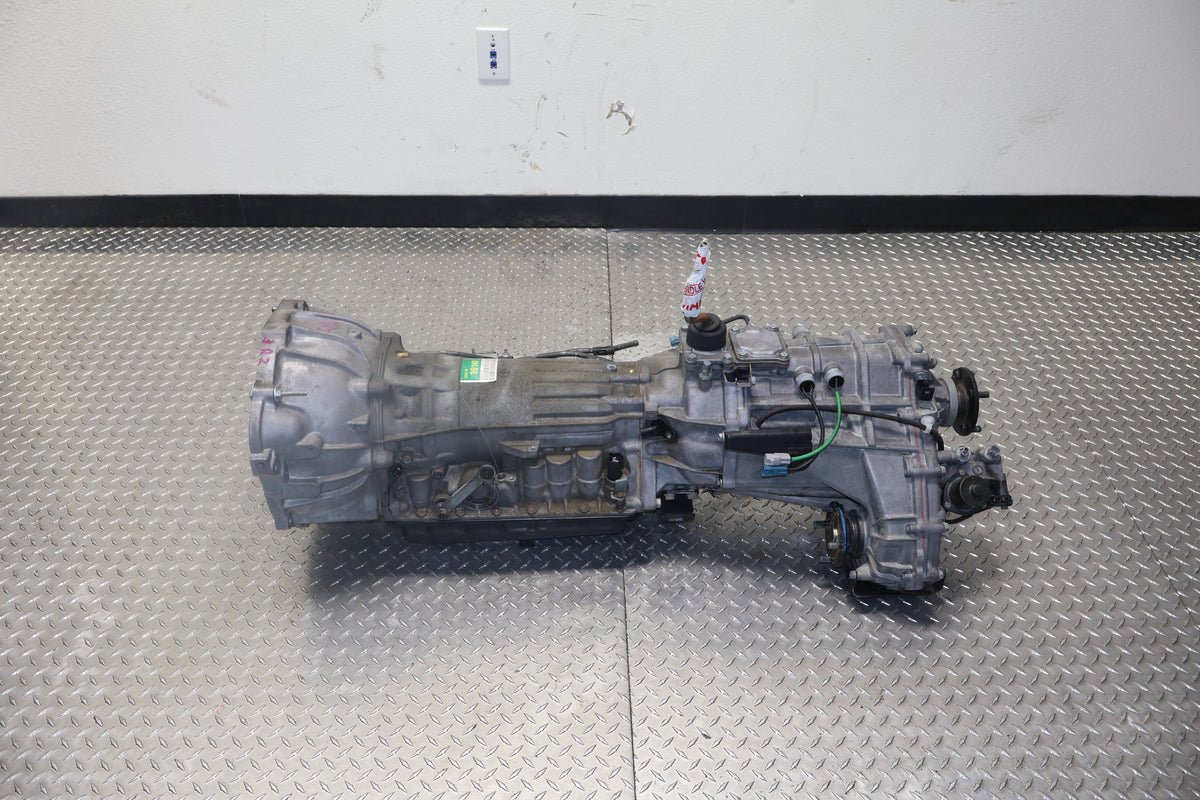

1995-1999 Toyota 4Runner 2.7L 4 Speed Automatic AWD Transmission JDM 3RZ-FE
Stock number TOY-TR-3RZFE-001
$1,199.99
In stock, ships from Grand Rapids
| Stock number | TOY-TR-3RZFE-001 |
|---|---|
| Make | Toyota |
| Engine code | 3RZ-FE |
| Fits model years | 1995-1999 |
| Category | Automatic Transmissions, Transmissions |
| Shipping weight | 150 lbs (estimated) |
| Condition | Used, imported from Japan, tested before dispatch |
| Warranty | 90 days from delivery |
Prefer to write it down? Call +1 503-551-4892 or email Sales@hanedaautos.com.
Get a freight price firstThis ships by freight. It travels bolted to a pallet, and the price depends on your ZIP, whether the address is residential and whether you need a liftgate. Order online and we will send the freight price before anything leaves the floor, or get the price up front below.
Checking fitment? Call +1 503-551-4892 or email Sales@hanedaautos.com with your VIN and we will confirm it against this unit.
About this unit
| Feature | Detail |
| Transmission Type | 4-Speed Automatic (A340F Series) |
| Drivetrain | 4WD / AWD (with Transfer Case) |
| Condition | Used JDM Import (Low Mileage) |
| Engine Compatibility | 2.7L 3RZ-FE I4 |
| Mileage | Approx. 55K Miles |
| Chassis Compatibility | N180 / N185 (3rd Gen 4Runner) |
Vehicle Fitment
This transmission serves as a direct replacement for the following North American models:
Toyota 4Runner 4WD (Base): 1995, 1996, 1997, 1998, 1999 (cable kickdown)
Toyota Tacoma 4WD (2.7L): 1995–1999 (cable kickdown)
Compatibility Note: This is specifically for the 2.7L 4-cylinder engine. It will not bolt up to the 3.4L V6 (5VZ-FE) due to bellhousing and input shaft differences. Please verify if your original transmission uses a throttle cable (kickdown) or is fully electronic (ECT-i).
JDM to USDM Installation & Technical Guide
To ensure 100% OBDII compliance and factory-spec shifting, professional technicians recommend these steps:
Solenoid & Harness Swap: You must transfer your original USDM internal wire harness and solenoids to the JDM unit. JDM plugs are frequently different, and using your USDM electronics ensures the ECU receives the correct resistance values, preventing “Check Engine” lights or limp mode.
Speed Sensor (VSS): Reuse your original USDM Speed Sensor from your old transmission. This ensures your speedometer and cruise control remain 100% accurate.
Transfer Case Configuration: This unit typically includes the JDM transfer case. Ensure the shifter linkage and flange size match your USDM driveshaft. In most cases, it is easiest to bolt your original USDM transfer case onto the JDM transmission housing.
Fluid Service: Flush the transmission cooler lines thoroughly. Fill only with Toyota ATF Dexron II/III compatible fluid (or as specified on your dipstick). Pro Tip: Replace your radiator at the same time to prevent the “Pink Milkshake” failure from ruining your new JDM transmission.
What is included
You receive exactly what is pictured. Engines are supplied as a long block assembly with the components visible in the photos. Accessories such as the alternator, starter, intake manifold or sensors are included only where you can see them on the unit, so check the photographs before ordering and ask us if anything is unclear.
Before you order
- Confirm the engine code against your own vehicle, not just the model year.
- Japanese market units can differ from the US version in intake, loom and sensors.
- Replace the timing components, water pump and seals while the unit is out. It is cheap insurance on an engine this age.
- Keep your original accessories until the swap is finished and running.
