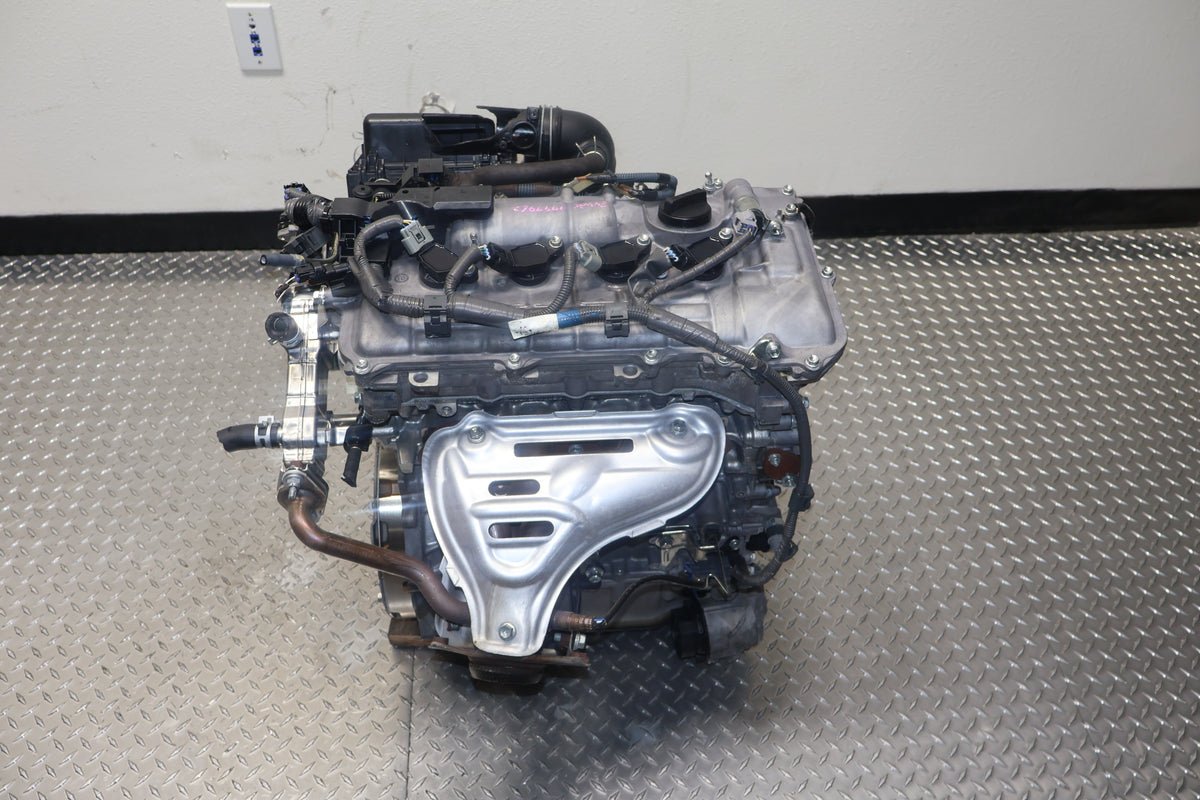

2011-2017 Lexus CT200h 1.8L DOHC Hybrid Engine JDM 2ZR-FXE

About this unit

Vehicle Fitment

This engine is a direct long-block replacement for the following North American models:

• Lexus CT200h: 2011, 2012, 2013, 2014, 2015, 2016, 2017

• Chassis Cross-Compatibility: Also serves as a high-quality donor for 2010–2015 Toyota Prius

• Compatibility Note: This is the Atkinson Cycle hybrid engine. It is not compatible with the standard 1.8L 2ZR-FE found in the non-hybrid Toyota Corolla or Matrix.

JDM to USDM Installation & Swap Guide

To ensure 100% compatibility and a seamless “Plug-and-Play” installation into your USDM Lexus, professional installers recommend the following “External Swap” steps:

1. Intake Manifold & EGR System: You must transfer your original USDM Intake Manifold and EGR Valve/Cooler. JDM versions may lack specific North American emissions ports. Pro Tip: Clean or replace your original EGR cooler to prevent the carbon buildup that leads to head gasket failure.

2. Engine Sensors: Transfer your original USDM Camshaft and Crankshaft Sensors to the JDM block to ensure the ECU receives familiar signals.

3. Wiring Harness: Always retain and use your original USDM Lexus Engine Wiring Harness. JDM harnesses are configured for right-hand drive and will not interface with your chassis fuse box or hybrid inverter.

4. Exhaust Manifold: Swap your original USDM Exhaust Manifold to maintain proper oxygen sensor and catalytic converter alignment.

5. Water Pump: The 2ZR-FXE uses an Electric Water Pump. Inspect the JDM unit; if you are over 100k miles on your chassis, we recommend installing a new OEM electric pump during the swap.

6. Transaxle Damper: Use your original hybrid Flywheel/Damper currently on your vehicle to ensure the smooth transition between gasoline and electric motor power.

What is included

You receive exactly what is pictured. Engines are supplied as a long block assembly with the components visible in the photos. Accessories such as the alternator, starter, intake manifold or sensors are included only where you can see them on the unit, so check the photographs before ordering and ask us if anything is unclear.

Before you order

• Confirm the engine code against your own vehicle, not just the model year.
• Japanese market units can differ from the US version in intake, loom and sensors.
• Replace the timing components, water pump and seals while the unit is out. It is cheap insurance on an engine this age.
• Keep your original accessories until the swap is finished and running.
