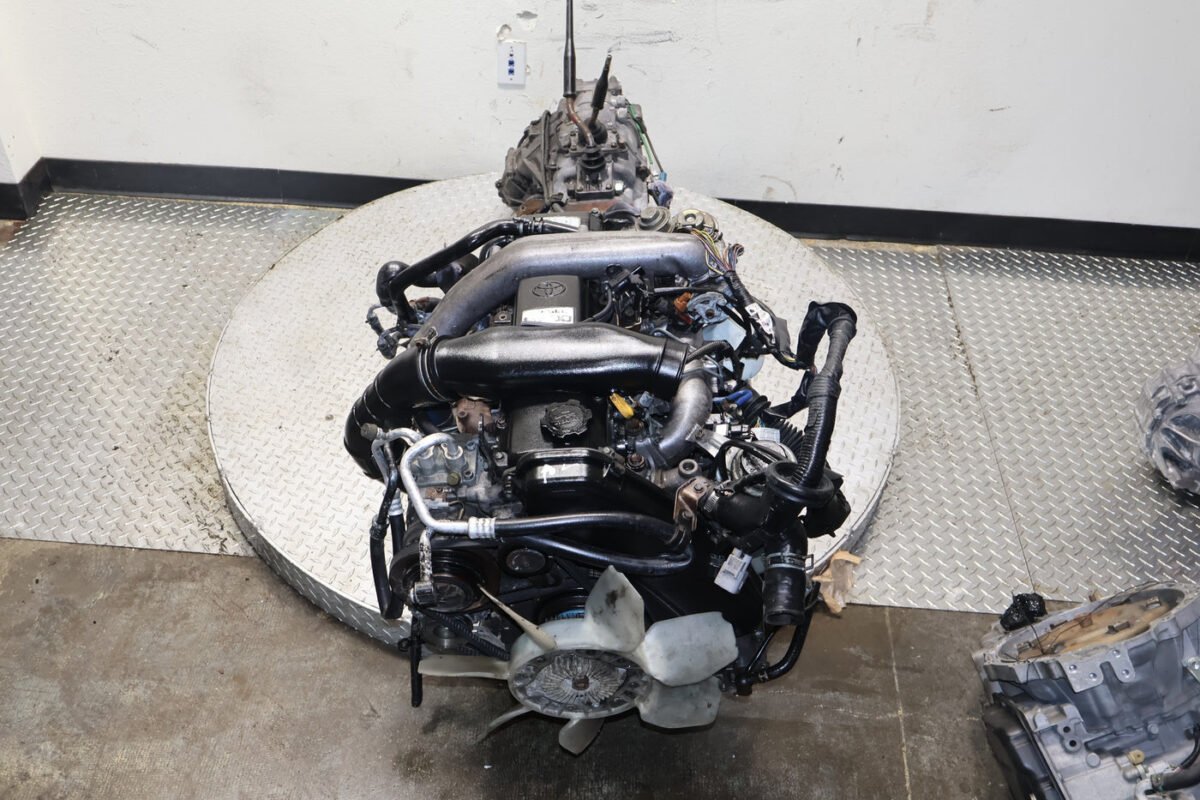

Toyota Hilux Surf Prado 3.0L Turbo Diesel Engine Manual AWD Transmission JDM 1KZ-TE

About this unit

Vehicle Fitment

This engine and transmission package serves as a direct replacement for the following models:

• Toyota Hilux Surf: 1993–2002 (KZN130, KZN185)

• Toyota Land Cruiser Prado: 1993–2002 (KZJ71, KZJ78, KZJ90, KZJ95)

• Toyota HiAce: 1993–2004 (KZH100 series)

• Compatibility Note: While the 1KZ-TE is a robust platform, ensure your specific chassis uses the Manual AWD Transmission configuration to ensure a seamless “drop-in” fit with your existing driveshafts and transfer case linkages.

JDM to USDM Installation & Technical Guide

To ensure 100% functionality and long-term durability, professional technicians recommend the following steps:

1. Cooling System: The 1KZ-TE is sensitive to heat. We strongly recommend installing a new OEM Toyota Water Pump, thermostat, and a heavy-duty aluminum radiator to prevent head gasket issues common to high-heat cycles.

2. Wiring & ECU: Ensure you are using the correct JDM ECU and Engine Wiring Harness included with the motor. The “E” in 1KZ-TE denotes electronic fuel injection control; using the matching computer is vital for proper timing and boost management.

3. Transmission Setup: This package includes the 5-Speed Manual AWD Transmission. Inspect the clutch disc and pressure plate before installation; replacing them now with a high-torque unit is recommended for off-road use.

4. Timing Belt: While the engine is out, replace the timing belt and tensioner. This is an interference engine, and fresh components provide peace of mind for the next 60k miles.

5. Fuel System: Inspect the glow plugs and fuel injectors. Using a high-quality diesel fuel treatment during the first few tanks will help clear any storage residue from the JDM fuel system.

What is included

You receive exactly what is pictured. Engines are supplied as a long block assembly with the components visible in the photos. Accessories such as the alternator, starter, intake manifold or sensors are included only where you can see them on the unit, so check the photographs before ordering and ask us if anything is unclear.

Before you order

• Confirm the engine code against your own vehicle, not just the model year.
• Japanese market units can differ from the US version in intake, loom and sensors.
• Replace the timing components, water pump and seals while the unit is out. It is cheap insurance on an engine this age.
• Keep your original accessories until the swap is finished and running.
