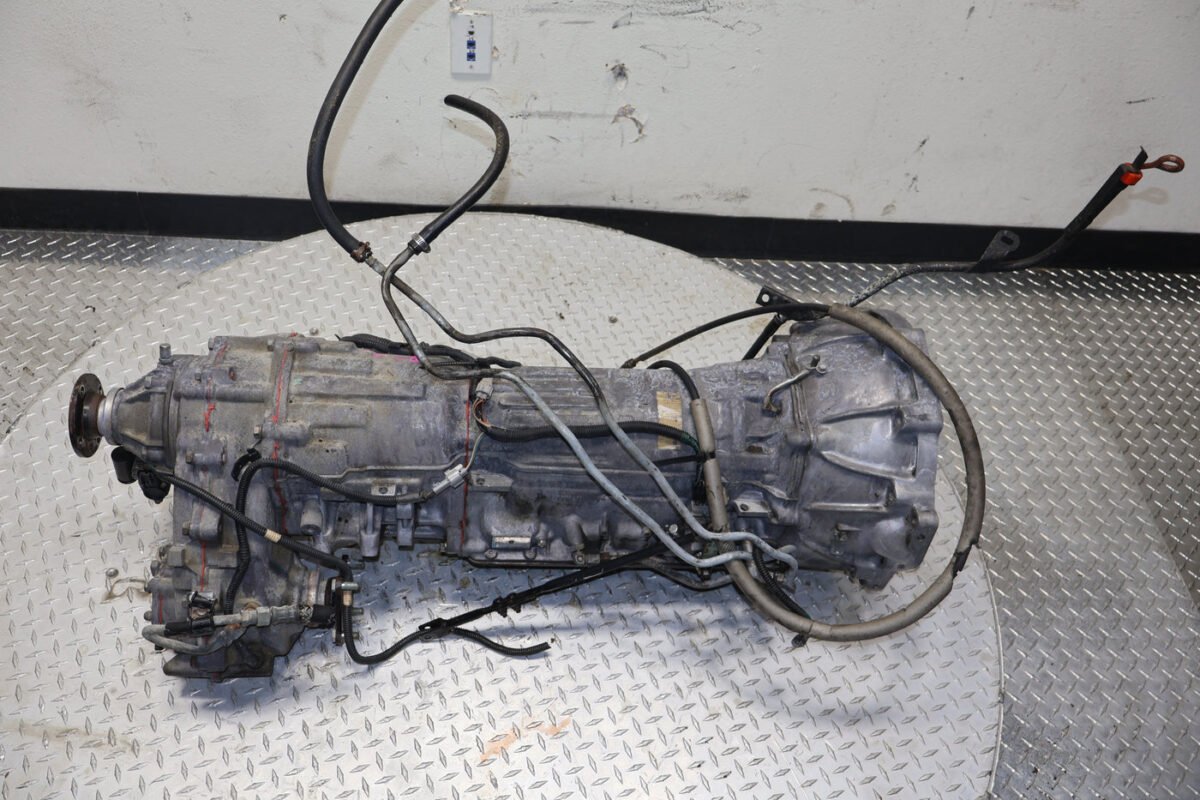

1988-1995 Toyota Pickup JDM 3VZ-E | 3.0L Automatic 4 Speed AWD Transmission A340H

About this unit

Technical & Fitment Specifications

• Transmission Code: A340H (Aisin-Warner 30-43LE)

• Engine Compatibility: Toyota 3VZ-E (3.0L SOHC 12-Valve V6)

• Configuration: Automatic 4-Speed Overdrive with Electronically Controlled Transmission (ECT)

• Drivetrain Layout: 4WD / AWD with integrated hydraulic transfer case

• Applicable Years: 1988–1995 Toyota Pickup (Hilux) and 1990–1995 Toyota 4Runner (Hilux Surf)

Essential Installation Notes

• Fluid System Notice: The A340H utilizes a shared hydraulic fluid system between the transmission assembly and the transfer case. Standard drain-and-fill procedures require checking both separate fluid reservoirs to ensure proper operating levels.

• Wiring Requirements: For JDM-sourced replacements or conversions, ensure matching plugs for the Electronically Controlled Transmission (ECT) solenoids and speed sensors, as differences exist between early (1988–1991) and late (1992–1995) model years.

What is included

You receive exactly what is pictured. Engines are supplied as a long block assembly with the components visible in the photos. Accessories such as the alternator, starter, intake manifold or sensors are included only where you can see them on the unit, so check the photographs before ordering and ask us if anything is unclear.

Before you order

• Confirm the engine code against your own vehicle, not just the model year.
• Japanese market units can differ from the US version in intake, loom and sensors.
• Replace the timing components, water pump and seals while the unit is out. It is cheap insurance on an engine this age.
• Keep your original accessories until the swap is finished and running.
