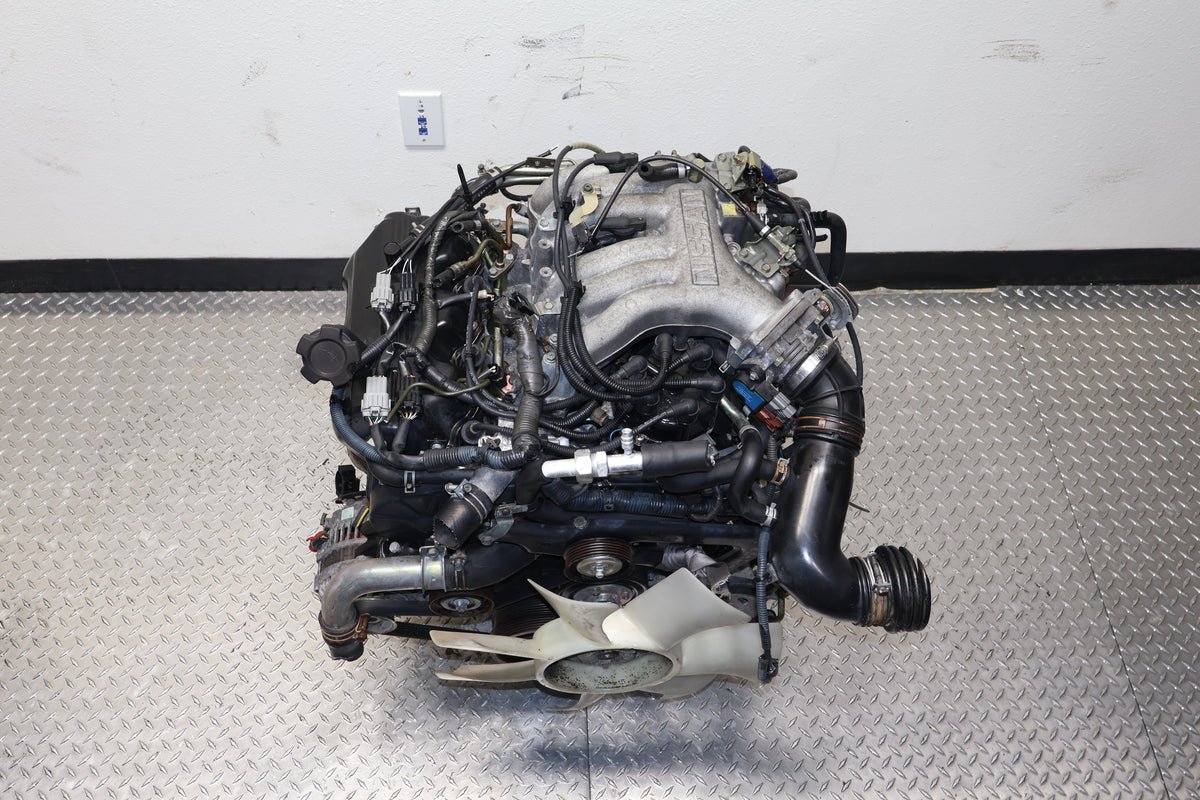

2001-2004 Nissan Xterra 3.3L V6 Engine JDM VG33E

About this unit

Vehicle Fitments

• 2001-2004 Nissan Xterra (3.3L V6 SOHC)

• 1996-2004 Nissan Pathfinder (3.3L V6 SOHC)

• 1999-2004 Nissan Frontier (3.3L V6 SOHC)

• Note: Sold as a long block. External accessories must be transferred from your original USDM engine.

JDM to USDM Swap Guide

Installing a JDM VG33E engine into a North American (USDM) 1999-2004 Nissan Xterra is a reliable upgrade, but minor differences between the Japanese domestic market and US market configurations require specific swap procedures:

Step 1: Pre-Installation Maintenance

• Replace the timing belt, water pump, front main seal, and rear main seal while the engine is out of the vehicle. It is much easier to service these components on an engine stand.

• Inspect the oil pan; some JDM truck or SUV variants use different oil pan configurations or dipstick locations depending on the donor vehicle (e.g., Terrano vs. Pathfinder/Xterra). Swap your original USDM Xterra oil pan and pickup tube if necessary to ensure proper clearance and dipstick alignment.

Step 2: The “Long Block” Principle

• Transfer USDM Accessories: Keep your original USDM intake manifold, exhaust manifolds/headers, alternator, power steering pump, and A/C compressor.

• Distributor Warning: JDM and USDM distributors can occasionally feature different plug wiring or internal optical/electronic triggers depending on the exact year. Always swap your original USDM distributor onto the JDM engine to maintain correct communication with your USDM ECU and avoid ignition timing codes.

Step 3: Sensors and Wiring Harness

• Transfer your original USDM coolant temperature sensors, oil pressure sending unit, knock sensor, and oxygen sensor wiring brackets over to the JDM block. Using your original sensors guarantees seamless plug-and-play integration with your factory Xterra harness.

Step 4: Flywheel / Flexplate

• If your Xterra is a manual transmission, install your USDM flywheel and clutch kit. If it is an automatic, bolt up your original USDM flexplate. Ensure the torque converter or pilot bushing is properly aligned during mating.

Step 5: Initial Startup & Fluids

• Fill the cooling system slowly, ensuring all air pockets are bled out of the cooling lines to prevent overheating.

• Prime the oil system by cranking the engine with the fuel pump fuse pulled (or ignition disabled) until oil pressure builds, then start the engine and monitor for leaks.

What is included

You receive exactly what is pictured. Engines are supplied as a long block assembly with the components visible in the photos. Accessories such as the alternator, starter, intake manifold or sensors are included only where you can see them on the unit, so check the photographs before ordering and ask us if anything is unclear.

Before you order

• Confirm the engine code against your own vehicle, not just the model year.
• Japanese market units can differ from the US version in intake, loom and sensors.
• Replace the timing components, water pump and seals while the unit is out. It is cheap insurance on an engine this age.
• Keep your original accessories until the swap is finished and running.
