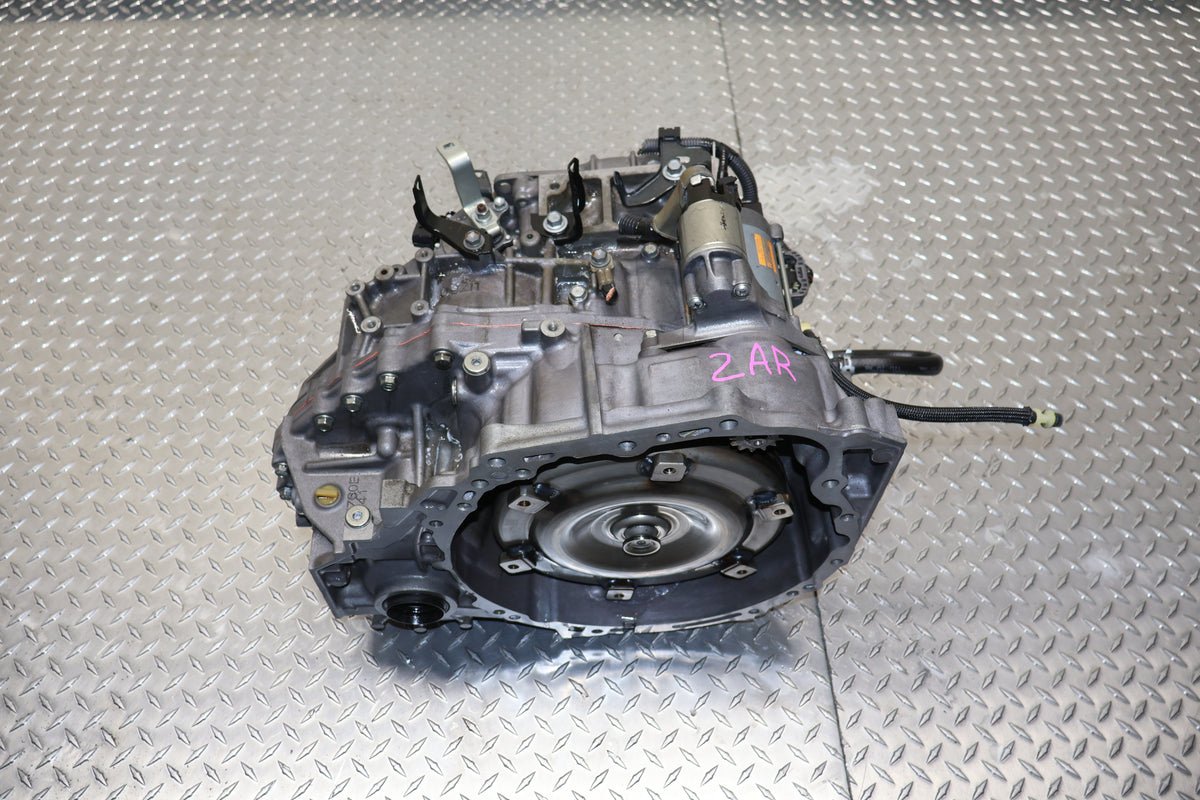

2013-2017 Toyota Camry 2.5L 6 Speed Automatic Transmission JDM 2AR-FE

2013-2017 Toyota Camry 2.5L 6 Speed Automatic Transmission JDM 2AR-FE

Stock number TOY-TR-2ARFE-001

$1,799.00

In stock, ships from Grand Rapids

Stock numberTOY-TR-2ARFE-001
MakeToyota
Engine code2AR-FE
Fits model years2013-2017
CategoryManual Transmissions, Transmissions
Shipping weight150 lbs (estimated)
ConditionUsed, imported from Japan, tested before dispatch
Warranty90 days from delivery

Prefer to write it down? Call +1 503-551-4892 or email Sales@hanedaautos.com.

Get a freight price first

This ships by freight. It travels bolted to a pallet, and the price depends on your ZIP, whether the address is residential and whether you need a liftgate. Order online and we will send the freight price before anything leaves the floor, or get the price up front below.

Checking fitment? Call +1 503-551-4892 or email Sales@hanedaautos.com with your VIN and we will confirm it against this unit.

About this unit

FeatureDetail
Transmission ModelU760E (6-Speed Automatic)
Engine Compatibility2.5L 2AR-FE (Non-Hybrid)
Drive TypeFront Wheel Drive (FWD)
Gear Ratio6-Speed Sequential Shift
Fluid TypeToyota Genuine ATF WS (World Standard)
OriginJDM (Japanese Domestic Market)

Vehicle Fitment

This transmission is a direct replacement for the XV50 Generation Toyota Camry equipped with the 2.5L engine:

  • Years: 2013, 2014, 2015, 2016, 2017

  • Trims: L, LE, SE, XLE (Gasoline Models)

  • Compatibility Note: This unit is not compatible with the 3.5L V6 or Hybrid (eCVT) models.

JDM to USDM Installation & Swap Guide

When swapping a JDM 2AR 2.5L Transmission into a USDM (United States Domestic Market) Camry, follow these steps to ensure seamless computer communication and performance:

  1. Neutral Safety Switch: Transfer your original USDM Neutral Safety Switch (Range Sensor) to the JDM unit to ensure the ECU recognizes all gear positions (P, R, N, D, S).

  2. Torque Converter: Ensure the JDM torque converter is fully seated before mating the transmission to the engine block. We recommend using the converter provided with the JDM unit if it matches your spline count.

  3. Transmission Cooler: Flush your vehicle’s existing transmission cooler and lines thoroughly to remove any debris from the previous failed unit before installation.

  4. Fluid Requirements: Only use Toyota ATF WS. Do not use generic ATF, as the U760E is highly sensitive to fluid viscosity.

Tags:

2012-2017 Toyota Camry Transmission, JDM 2.5L Transmission, 2AR-FE Automatic Transmission, U760E Transmission, Toyota Camry Gearbox, 2012 Camry Transmission, 2013 Camry Transmission, 2014 Camry Transmission, 2015 Camry Transmission, 2016 Camry Transmission, 2017 Camry Transmission, Low Mileage JDM, 6-Speed Automatic, Replacement Transmission, Tested JDM Parts, Toyota Camry 2ARFE, Imported Japanese Transmission, Camry AT Replacement

What is included

You receive exactly what is pictured. Engines are supplied as a long block assembly with the components visible in the photos. Accessories such as the alternator, starter, intake manifold or sensors are included only where you can see them on the unit, so check the photographs before ordering and ask us if anything is unclear.

Before you order

  • Confirm the engine code against your own vehicle, not just the model year.
  • Japanese market units can differ from the US version in intake, loom and sensors.
  • Replace the timing components, water pump and seals while the unit is out. It is cheap insurance on an engine this age.
  • Keep your original accessories until the swap is finished and running.
