2000-2008 Toyota Corolla 1.8L VVTi Engine JDM 1ZZ-FE

About this unit

Vehicle Fitment

This engine is a direct long-block replacement for the following North American E120/E130 Generation models:

• Toyota Corolla: 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008

• Trims: CE, LE, S, VE

• Chassis Cross-Compatibility: Also fits 2003–2008 Toyota Matrix (Base/XR), 2003–2008 Pontiac Vibe (Base), and 2000–2005 Toyota Celica GT.

• Compatibility Note: This engine is for the Standard/S models and is not compatible with the Corolla XRS (2ZZ-GE).

JDM to USDM Installation & Swap Guide

To ensure 100% compatibility and a seamless “Plug-and-Play” installation into your USDM Corolla, professional installers recommend the following “External Swap” steps:

1. Intake & Exhaust Manifolds: You must transfer your original USDM Intake Manifold and Exhaust Manifold. JDM versions may have different vacuum line routing or lack the specific emissions ports (EGR/O2) required for North American smog compliance.

2. Engine Sensors: Transfer your original USDM Camshaft, Crankshaft, and Knock Sensors to the JDM block to ensure the ECU receives familiar signals and prevents Check Engine Lights (CEL).

3. Wiring Harness: Always retain and use your original USDM Engine Wiring Harness. JDM harnesses are configured for right-hand drive and will not interface with your chassis or fuse box.

4. Valve Cover: If your USDM Corolla has specific PCV valve locations or breather hose configurations, swap your original Valve Cover onto the JDM engine.

5. Flywheel/Flexplate: Ensure you use the flywheel (Manual) or flexplate (Automatic) that matches your specific transmission.

6. Water Crossover Pipe: Inspect the rear water outlet and crossover pipe. If the sensor bungs or hose angles differ, swap your USDM components to the JDM block.

What is included

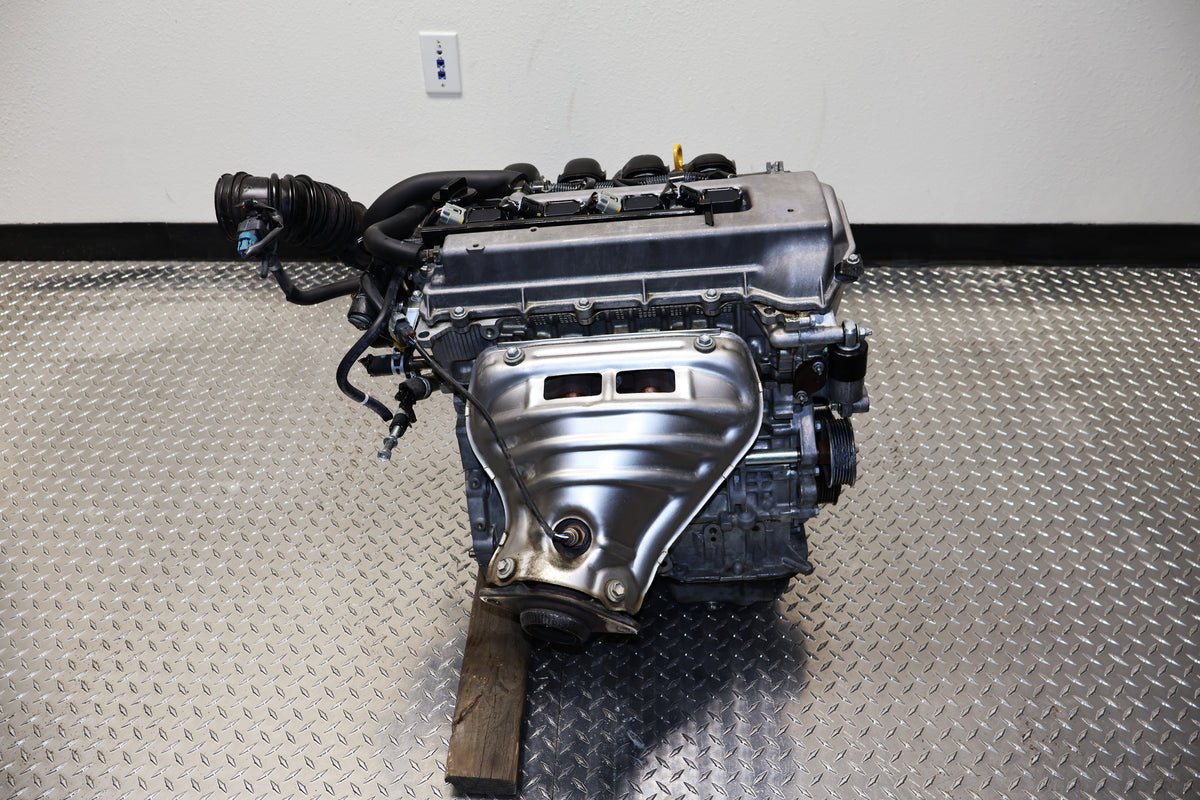

You receive exactly what is pictured. Engines are supplied as a long block assembly with the components visible in the photos. Accessories such as the alternator, starter, intake manifold or sensors are included only where you can see them on the unit, so check the photographs before ordering and ask us if anything is unclear.

Before you order

• Confirm the engine code against your own vehicle, not just the model year.
• Japanese market units can differ from the US version in intake, loom and sensors.
• Replace the timing components, water pump and seals while the unit is out. It is cheap insurance on an engine this age.
• Keep your original accessories until the swap is finished and running.
