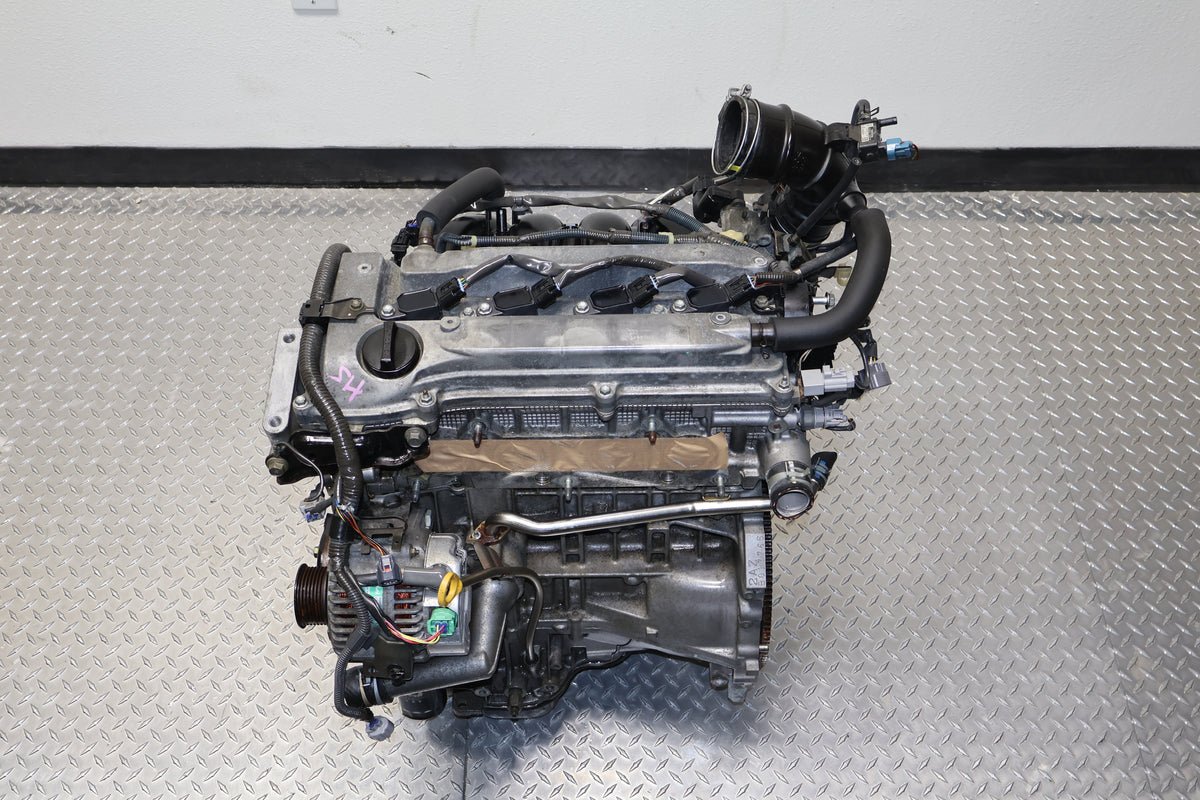

2001-2007 Toyota Highlander 2.4L Inline-4 DOHC VVTi Engine JDM 2AZ-FE

Name: 2001-2007 Toyota Highlander 2.4L Inline-4 DOHC VVTi Engine JDM 2AZ-FE
Brand: Toyota
SKU: 1138
Price: 1399.99 USD
Availability: InStock

Stock number 1138

$1,399.99

In stock, ships from Grand Rapids

Stock number	1138
Make	Toyota
Engine code	2AZ-FE
Fits model years	2001-2007
Category	Engines, Toyota Engines
Shipping weight	280 lbs (estimated)
Condition	Used, imported from Japan, tested before dispatch
Warranty	90 days from delivery

Prefer to write it down? Call +1 503-551-4892 or email Sales@hanedaautos.com.

Get a freight price first

This ships by freight. It travels bolted to a pallet, and the price depends on your ZIP, whether the address is residential and whether you need a liftgate. Order online and we will send the freight price before anything leaves the floor, or get the price up front below.

Checking fitment? Call +1 503-551-4892 or email Sales@hanedaautos.com with your VIN and we will confirm it against this unit.

About this unit

Specification	Details
Engine Code	2AZ-FE
Displacement	2.4L (2362cc)
Configuration	Inline 4-Cylinder
Valvetrain	DOHC 16-Valve
Variable Valve Timing	VVT-i
Fuel System	Electronic Fuel Injection (EFI)
Aspiration	Naturally Aspirated
Block Material	Aluminum
Cylinder Head Material	Aluminum
Compression Ratio	Approximately 9.6:1
Horsepower	Approximately 155–160 HP
Torque	Approximately 162–165 lb-ft
Fuel Type	Regular Unleaded
Engine Orientation	Transverse Mounted

ehicle Fitment

Direct Fit Applications

Toyota Highlander 2.4L (2AZ-FE)

2001 Toyota Highlander 2.4L
2002 Toyota Highlander 2.4L
2003 Toyota Highlander 2.4L
2004 Toyota Highlander 2.4L
2005 Toyota Highlander 2.4L
2006 Toyota Highlander 2.4L
2007 Toyota Highlander 2.4L

JDM to USDM Installation Notes

Important Swap Information

This JDM 2AZ-FE engine is commonly used as a replacement for USDM Toyota Highlander 2.4L applications. While the long block remains fundamentally the same, some external accessories, sensors, and emissions equipment may differ between JDM and USDM models.

For the most seamless installation, transfer the following components from your original engine:

Intake manifold
Exhaust manifold
Throttle body
Fuel injectors and fuel rail
Engine wiring harness
Engine mount brackets
Alternator and power steering accessories
EGR components (if equipped)
Sensors and switches
Water outlet housing and coolant fittings

ECU & Wiring Compatibility

Retain the original USDM ECU for proper operation.
Reuse the original factory engine harness.
No ECU reprogramming is typically required when replacing a USDM 2AZ-FE with a JDM 2AZ-FE.
Verify all electrical connectors and sensors during installation.

Emissions Compliance

JDM engines may have different emissions configurations than USDM vehicles.
Transfer all original emissions equipment to maintain compliance with local and federal regulations.
California and CARB-regulated vehicles may require additional emissions verification.

Recommended Service Before Installation

To maximize reliability and reduce future labor costs, it is recommended to replace:

Valve cover gasket
Front crankshaft seal
Rear main seal
Water pump
Thermostat
Spark plugs
Serpentine belt
Coolant hoses
Timing chain tensioner (if necessary)

What is included

You receive exactly what is pictured. Engines are supplied as a long block assembly with the components visible in the photos. Accessories such as the alternator, starter, intake manifold or sensors are included only where you can see them on the unit, so check the photographs before ordering and ask us if anything is unclear.

Before you order

Confirm the engine code against your own vehicle, not just the model year.
Japanese market units can differ from the US version in intake, loom and sensors.
Replace the timing components, water pump and seals while the unit is out. It is cheap insurance on an engine this age.
Keep your original accessories until the swap is finished and running.
