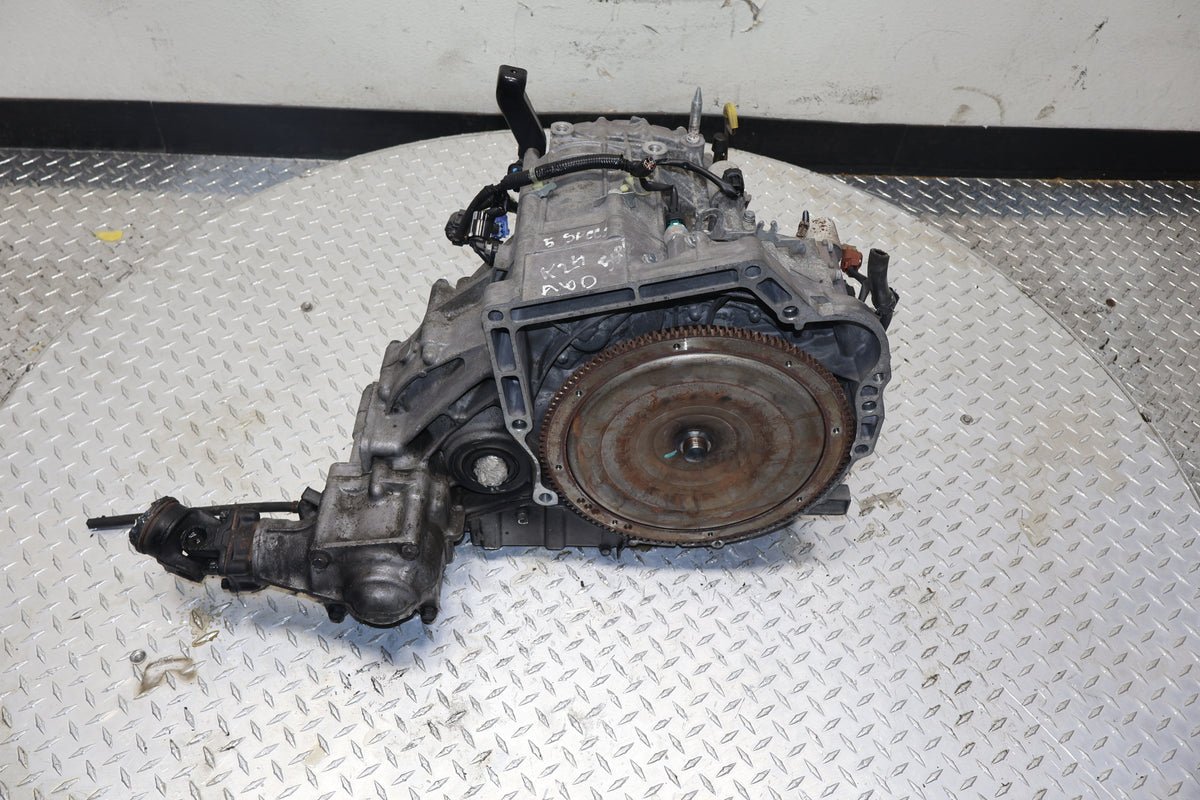

2005-2006 Honda CR-V 2.4L AWD 5 Speed Automatic Transmission JDM K24A
Stock number HON-TR-K24A-003
$899.99
In stock, ships from Grand Rapids
| Stock number | HON-TR-K24A-003 |
|---|---|
| Make | Honda |
| Engine code | K24A |
| Fits model years | 2005-2006 |
| Category | Manual Transmissions, Transmissions |
| Shipping weight | 150 lbs (estimated) |
| Condition | Used, imported from Japan, tested before dispatch |
| Warranty | 90 days from delivery |
Prefer to write it down? Call +1 503-551-4892 or email Sales@hanedaautos.com.
Get a freight price firstThis ships by freight. It travels bolted to a pallet, and the price depends on your ZIP, whether the address is residential and whether you need a liftgate. Order online and we will send the freight price before anything leaves the floor, or get the price up front below.
Checking fitment? Call +1 503-551-4892 or email Sales@hanedaautos.com with your VIN and we will confirm it against this unit.
About this unit
| Specification | Details |
|---|---|
| Transmission Type | Automatic |
| Speeds | 5-Speed Automatic |
| Drivetrain | AWD (All-Wheel Drive) |
| Engine Compatibility | K24A |
| Engine Displacement | 2.4L (2354cc) |
| Engine Family | Honda K-Series |
| Control Type | Electronic Automatic |
| Shift Pattern | PRND21 |
| Differential | Integrated AWD Transfer Assembly |
| OEM Manufacturer | Honda |
| Condition | Used JDM Import |
| Mileage | Low Mileage JDM Unit |
Vehicle Fitment
Direct Fit Applications
Honda CR-V AWD Automatic
- 2005 Honda CR-V AWD 2.4L Automatic
- 2006 Honda CR-V AWD 2.4L Automatic
Engine Compatibility
- K24A 2.4L DOHC i-VTEC Engine
- K24A1-equipped CR-V models
Verify Before Purchase
Please verify:
- AWD configuration
- Automatic transmission model
- Transmission ID code
- Electrical connector style
- Speed sensor configuration
- Transfer case compatibility
Some production date variations may require minor component transfers.
JDM to USDM Installation Notes
Important Swap Information
This JDM Honda CR-V AWD automatic transmission is commonly installed into USDM 2005-2006 Honda CR-V AWD vehicles. While the transmission assembly is largely identical, certain external sensors, brackets, and electronic components may vary between JDM and USDM applications.
For proper installation, transfer the following components from your original transmission when necessary:
- Transmission range sensor
- Vehicle speed sensors
- Shift linkage components
- Transmission wiring harness
- Transmission mounts and brackets
- Neutral safety switch
- External cooling line fittings
- Transfer case
ECU & Electronics Compatibility
- Retain the original USDM ECU/TCM.
- Reuse the factory transmission wiring harness when required.
- Verify all electrical connectors before installation.
- No programming is typically required when replacing an identical AWD automatic transmission.
Recommended Maintenance Before Installation
To maximize transmission longevity, we recommend replacing:
- Front axle seals
- Rear output shaft seal
- Transmission filter (if serviceable)
- Honda OEM ATF fluid
- Cooler line O-rings
- Transmission mount bushings
- Driveshaft seals (AWD models)
What is included
You receive exactly what is pictured. Engines are supplied as a long block assembly with the components visible in the photos. Accessories such as the alternator, starter, intake manifold or sensors are included only where you can see them on the unit, so check the photographs before ordering and ask us if anything is unclear.
Before you order
- Confirm the engine code against your own vehicle, not just the model year.
- Japanese market units can differ from the US version in intake, loom and sensors.
- Replace the timing components, water pump and seals while the unit is out. It is cheap insurance on an engine this age.
- Keep your original accessories until the swap is finished and running.
