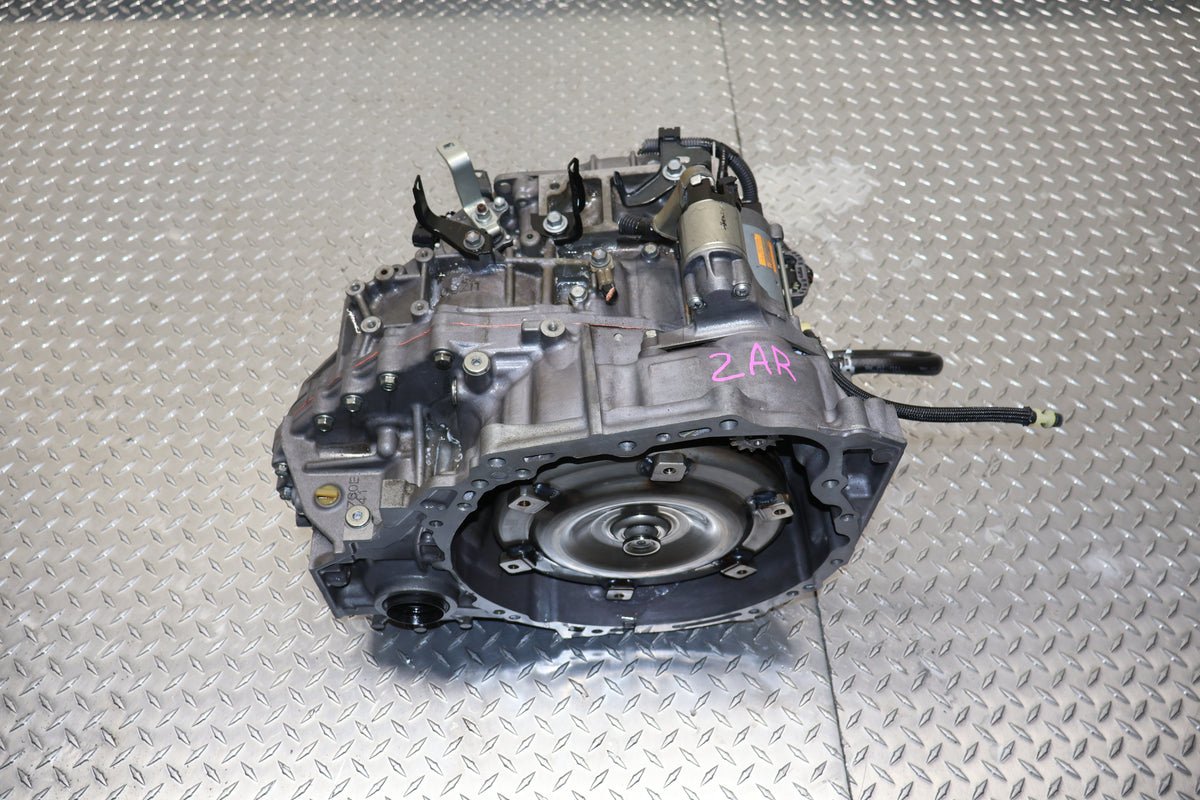

2013-2017 Toyota RAV4 2.5L 6 Speed Automatic Transmission JDM 2AR-FE
Stock number TOY-TR-2ARFE-002
$1,599.99
In stock, ships from Grand Rapids
| Stock number | TOY-TR-2ARFE-002 |
|---|---|
| Make | Toyota |
| Engine code | 2AR-FE |
| Fits model years | 2013-2017 |
| Category | Manual Transmissions, Transmissions |
| Shipping weight | 150 lbs (estimated) |
| Condition | Used, imported from Japan, tested before dispatch |
| Warranty | 90 days from delivery |
Prefer to write it down? Call +1 503-551-4892 or email Sales@hanedaautos.com.
Get a freight price firstThis ships by freight. It travels bolted to a pallet, and the price depends on your ZIP, whether the address is residential and whether you need a liftgate. Order online and we will send the freight price before anything leaves the floor, or get the price up front below.
Checking fitment? Call +1 503-551-4892 or email Sales@hanedaautos.com with your VIN and we will confirm it against this unit.
About this unit
| Feature | Detail |
| Transmission Model | U760E (6-Speed Automatic) |
| Engine Compatibility | 2.5L 2AR-FE (Non-Hybrid) |
| Drive Type | Front Wheel Drive (FWD) |
| Gear Ratio | 6-Speed Sequential Shift |
| Fluid Type | Toyota Genuine ATF WS (World Standard) |
| Origin | JDM (Japanese Domestic Market) |
Vehicle Fitment
This transmission is a direct replacement for the Fourth Generation (XA40) Toyota RAV4:
Model Years: 2013, 2014, 2015, 2016, 2017
Trims: LE, XLE, SE, Limited (Non-Hybrid)
JDM to USDM Installation & Swap Guide
When swapping a JDM 2AR 2.5L Transmission into a USDM (United States Domestic Market) RAV4, follow these steps to ensure seamless computer communication and performance:
Neutral Safety Switch: Transfer your original USDM Neutral Safety Switch (Range Sensor) to the JDM unit to ensure the ECU recognizes all gear positions (P, R, N, D, S).
Torque Converter: Ensure the JDM torque converter is fully seated before mating the transmission to the engine block. We recommend using the converter provided with the JDM unit if it matches your spline count.
Transmission Cooler: Flush your vehicle’s existing transmission cooler and lines thoroughly to remove any debris from the previous failed unit before installation.
Fluid Requirements: Only use Toyota ATF WS. Do not use generic ATF, as the U760E is highly sensitive to fluid viscosity.
- Rear Cover Swap: The rear cover would need to be swapped as the JDM ones comes with a mount.
Tags:
2013-2017 Toyota RAV4 Transmission, JDM 2.5L Transmission, 2AR-FE Automatic Transmission, U760E Transmission, Toyota RAV4 Gearbox, 2013 RAV4 Transmission, 2014 RAV4 Transmission, 2015 RAV4 Transmission, 2016 RAV4 Transmission, 2017 RAV4 Transmission, Low Mileage JDM, 6-Speed Automatic, Replacement Transmission, Tested JDM Parts, Toyota RAV4 2ARFE, Imported Japanese Transmission, RAV4 AT Replacement
What is included
You receive exactly what is pictured. Engines are supplied as a long block assembly with the components visible in the photos. Accessories such as the alternator, starter, intake manifold or sensors are included only where you can see them on the unit, so check the photographs before ordering and ask us if anything is unclear.
Before you order
- Confirm the engine code against your own vehicle, not just the model year.
- Japanese market units can differ from the US version in intake, loom and sensors.
- Replace the timing components, water pump and seals while the unit is out. It is cheap insurance on an engine this age.
- Keep your original accessories until the swap is finished and running.
