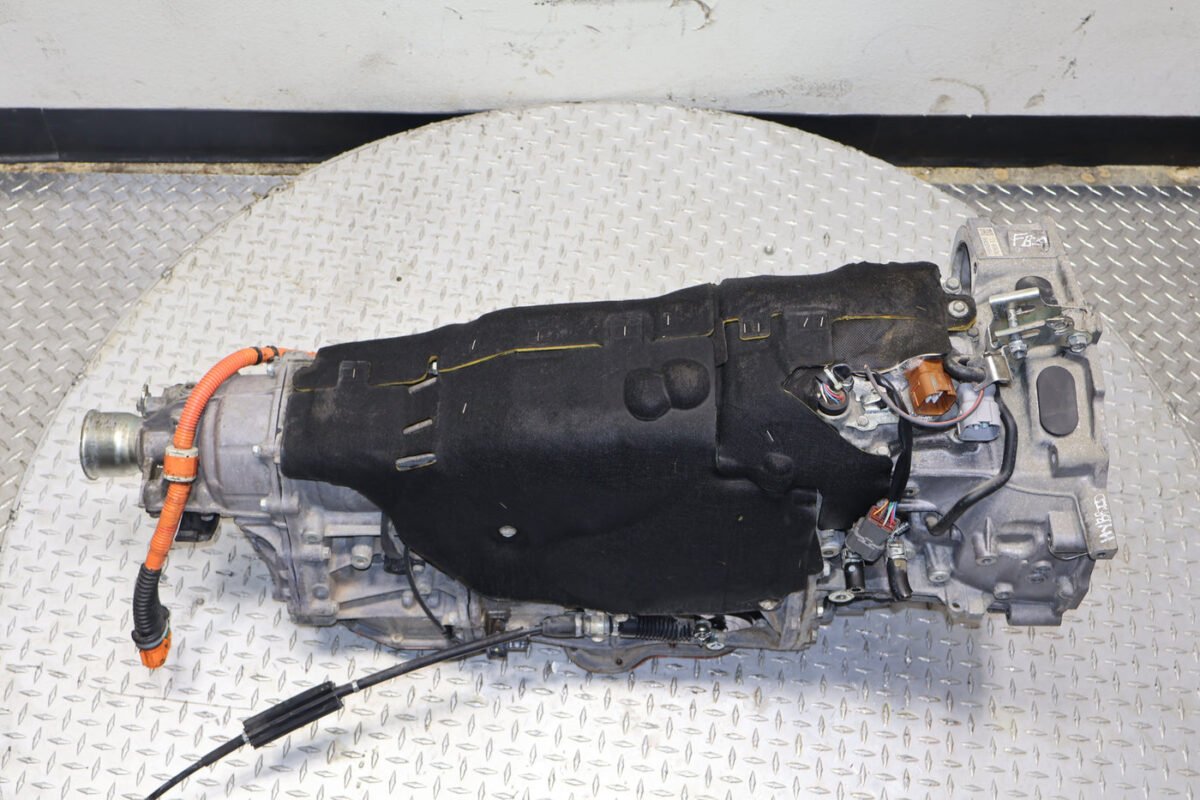

2014-2016 Subaru XV Crosstrek 2.0L Automatic AWD Hybrid Transmission JDM FB20 TH58ADD8AB 3.9FD

2014-2016 Subaru XV Crosstrek 2.0L Automatic AWD Hybrid Transmission JDM FB20 TH58ADD8AB 3.9FD

Stock number SUB-EN-FB20-002

$2,249.99

In stock, ships from Grand Rapids

Stock numberSUB-EN-FB20-002
MakeSubaru
Engine codeFB20
Fits model years2014-2016
CategoryEngines, Subaru Engines
Shipping weight280 lbs (estimated)
ConditionUsed, imported from Japan, tested before dispatch
Warranty90 days from delivery

Prefer to write it down? Call +1 503-551-4892 or email Sales@hanedaautos.com.

Get a freight price first

This ships by freight. It travels bolted to a pallet, and the price depends on your ZIP, whether the address is residential and whether you need a liftgate. Order online and we will send the freight price before anything leaves the floor, or get the price up front below.

Checking fitment? Call +1 503-551-4892 or email Sales@hanedaautos.com with your VIN and we will confirm it against this unit.

About this unit

FeatureDetail
Transmission TypeLineartronic CVT (Hybrid Integrated)
DrivetrainSymmetrical AWD
ConditionUsed JDM Import (Low Mileage)
Engine Compatibility2.0L FB20 Hybrid
Transmission CodeTH58ADD8AB / TH58 (Series)
MileageApprox. 44K Miles

Vehicle Fitment

This transmission serves as a direct replacement for the following North American models:

  • Subaru XV Crosstrek Hybrid: 2014, 2015, 2016

  • Chassis Code: GP (GPE Hybrid Chassis)

  • Compatibility Note: This transmission is strictly for Hybrid models. It will not fit standard gasoline-only Crosstreks. Please verify the transmission code (TH58…) on the driver-side strut tower or door jamb plate before ordering.

JDM to USDM Installation & Technical Guide

Installing a JDM Hybrid transmission requires specific steps to ensure the Hybrid Control Unit (HCU) and TCM communicate correctly:

  • Safety Warning: This transmission interfaces with the High-Voltage (HV) battery system. Installation should only be performed by a technician qualified to work on hybrid vehicles. Ensure the Service Plug on the HV battery is removed before installation.

  • Component Transfer: You must transfer your original USDM Transmission Wiring Harness and External Sensors to the JDM unit. This ensures the USDM computer sees the correct resistance and data values, preventing “Check Hybrid System” warnings.

  • Fluid Requirements: Use ONLY Subaru High Torque CVT Fluid (Orange/Green as specified). Using standard CVT fluid or generic ATF will cause internal slippage and immediate damage to the hybrid motor-generator unit.

  • TCM Calibration: After installation, the vehicle may require a “Learning Value Reset” using a Subaru-compatible scan tool (like SSM4) to calibrate the clutch engagement points and the electric motor integration.

What is included

You receive exactly what is pictured. Engines are supplied as a long block assembly with the components visible in the photos. Accessories such as the alternator, starter, intake manifold or sensors are included only where you can see them on the unit, so check the photographs before ordering and ask us if anything is unclear.

Before you order

  • Confirm the engine code against your own vehicle, not just the model year.
  • Japanese market units can differ from the US version in intake, loom and sensors.
  • Replace the timing components, water pump and seals while the unit is out. It is cheap insurance on an engine this age.
  • Keep your original accessories until the swap is finished and running.
