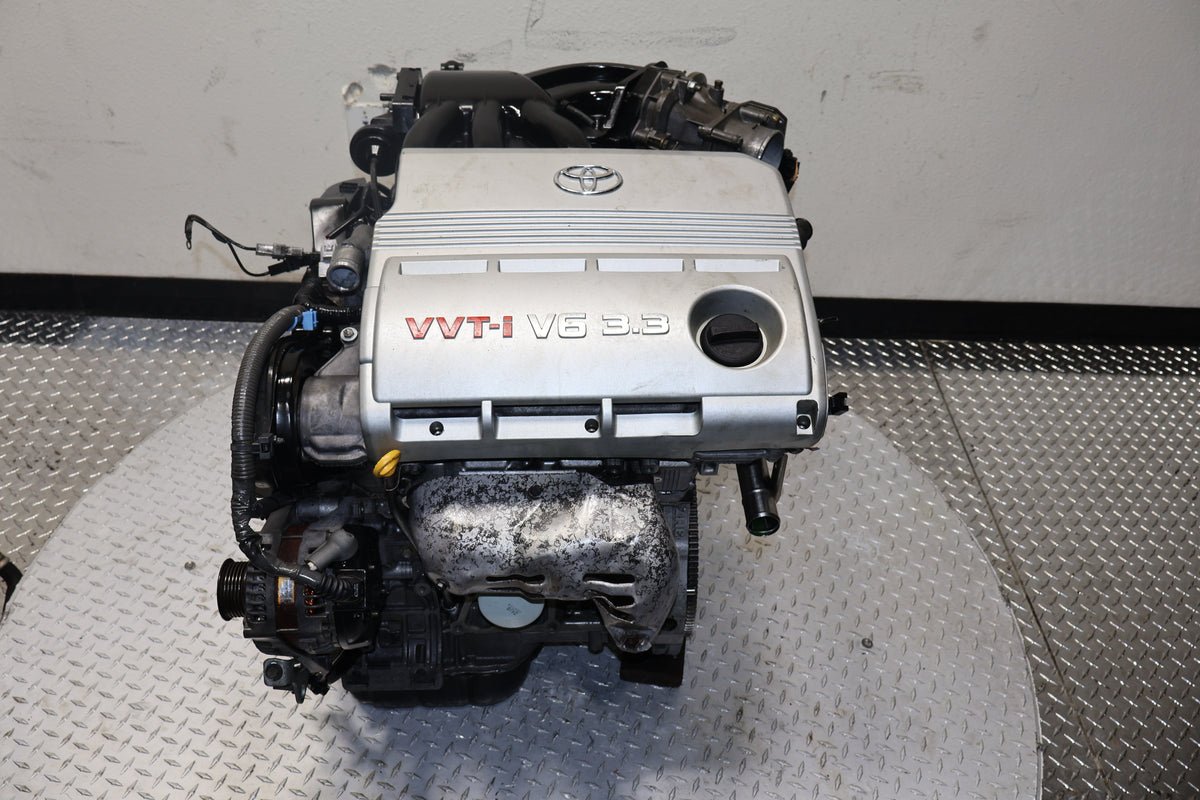

2004-2006 Toyota Sienna 3.3L V6 DOHC VVTi AWD Engine JDM 3MZ-FE

2004-2006 Toyota Sienna 3.3L V6 DOHC VVTi AWD Engine JDM 3MZ-FE

Stock number TOY-EN-3MZFE-005

$1,299.99

In stock, ships from Grand Rapids

Stock numberTOY-EN-3MZFE-005
MakeToyota
Engine code3MZ-FE
Fits model years2004-2006
CategoryEngines, Toyota Engines
Shipping weight420 lbs (estimated)
ConditionUsed, imported from Japan, tested before dispatch
Warranty90 days from delivery

Prefer to write it down? Call +1 503-551-4892 or email Sales@hanedaautos.com.

Get a freight price first

This ships by freight. It travels bolted to a pallet, and the price depends on your ZIP, whether the address is residential and whether you need a liftgate. Order online and we will send the freight price before anything leaves the floor, or get the price up front below.

Checking fitment? Call +1 503-551-4892 or email Sales@hanedaautos.com with your VIN and we will confirm it against this unit.

About this unit

FeatureDetail
Engine Code3MZ-FE (JDM Version)
Displacement3.3 Liter
Configuration60-Degree V6
Valve TrainDOHC 24-Valve VVT-i
Block MaterialAluminum Alloy
HorsepowerApprox. 230 hp @ 5600 RPM
Torque242 lb-ft @ 3600 RPM

Vehicle Fitment

This engine is a direct long-block replacement for the following North American models:

  • Toyota Sienna (AWD / All-Wheel Drive): 2004, 2005, 2006

  • Compatibility Note: This is the All-Wheel Drive (AWD) configuration. While the internal long block is shared with FWD models, AWD units require specific oil pan and transfer case mounting provisions unique to the Sienna AWD chassis.

JDM to USDM Installation & Swap Guide

To ensure 100% compatibility and maintain your Sienna’s emissions and drivability, professional Toyota technicians recommend the following “External Swap” steps:

  1. Intake & Exhaust Manifolds: You must transfer your original USDM Intake Manifold and Exhaust Manifolds. JDM versions may have different vacuum port layouts and lack specific emissions bungs or EGR components required for North American OBDII compliance.

  2. Wiring Harness: Always retain and use your original USDM Engine Wiring Harness. JDM harnesses are configured for right-hand drive and will not interface with your Sienna’s chassis bulkheads or ECU.

  3. Engine Sensors: Transfer your original USDM Camshaft and Crankshaft Sensors. Toyota electronics are highly sensitive; using your original “known-good” sensors prevents intermittent signal issues or Check Engine Light codes.

  4. Oil Pan & Pickup: If your USDM Sienna is AWD, you must transfer your original USDM Oil Pan and Pickup Tube to the JDM block. This ensures proper clearance for the front subframe and AWD transfer case assembly.

  5. Knock Sensors: We recommend transferring your original USDM Knock Sensors (located in the “V” of the block) while the intake is removed to ensure compatibility with your factory harness.

What is included

You receive exactly what is pictured. Engines are supplied as a long block assembly with the components visible in the photos. Accessories such as the alternator, starter, intake manifold or sensors are included only where you can see them on the unit, so check the photographs before ordering and ask us if anything is unclear.

Before you order

  • Confirm the engine code against your own vehicle, not just the model year.
  • Japanese market units can differ from the US version in intake, loom and sensors.
  • Replace the timing components, water pump and seals while the unit is out. It is cheap insurance on an engine this age.
  • Keep your original accessories until the swap is finished and running.
